Story at a glance:

  • The new ASU facility is pursuing LEED Platinum certification.
  • As part of the project’s sustainability strategy, the team set out to reduce the total amount of Portland cement in the building structure by at least 40%.
  • The concrete had to be aesthetically pleasing, as it would be used in Class A architecturally exposed columns, walls, stairs, deck soffits, and polished concrete floors.

Arizona State University’s Interdisciplinary Science and Technology 7 (ISTB-7) building is the latest among dozens of LEED projects on campus, and it’s by far the most ambitious.

ISTB-7 is a new, approximately 281,000 gross-square-foot, high-performance research facility that fosters an interdisciplinary approach to knowledge generation and leading-edge research, including innovative endeavors that focus on the sustainability of food, water, and energy. In expanding the research district at ASU’s Tempe campus, the building will give researchers a means to collaborate on pressing environmental and food challenges.

In addition to offering public outreach and exhibit space, ISTB-7 will be home to the Julie Ann Wrigley Global Futures Laboratory, the Rob and Melani Walton Sustainability Solutions Service, the School of Sustainability, the Institute of Human Origins, and a five-story courtyard biome of flora and fauna.

“Congrats to ASU and the design and construction team on achieving LEED Platinum certification,” says Martin Marietta AZ Quality Control Manager Joel Lopez Martinez. “This project was a great opportunity for our team to further increase fly ash use in the pursuit of CO2 reduction for mix designs. As an example, through mix optimization, we were able to reduce the CO2 of one mix design by 59kg CO2e per cubic yard, which equated to approximately 624,000 kg CO2e savings on the decks alone. GCP was a great partner on the admixtures and mix design CO2 comparisons. This project offered Martin Marietta AZ valuable experience in understanding how to drive carbon reduction targets.”

Using a range of innovative approaches, including evapotranspiration, photovoltaics, and ASU’s own carbon-capture technology, the building is pursuing LEED Platinum status.

Solving Challenges

Cement is carbon-intensive to produce, so reducing the amount of cement in the building’s concrete mix was an essential element in lowering the project’s embodied carbon footprint. The team set out to utilize a post-consumer byproduct to reduce the total amount of Portland cement in the building structure by at least 40%.

“It takes a lot of equipment and resources to produce cement,” says McCarthy Building Companies Senior Project Manager Carlos Diaz. “If you can replace a high percentage of cement with a recycled material like fly ash, you can offset a significant amount of carbon.”

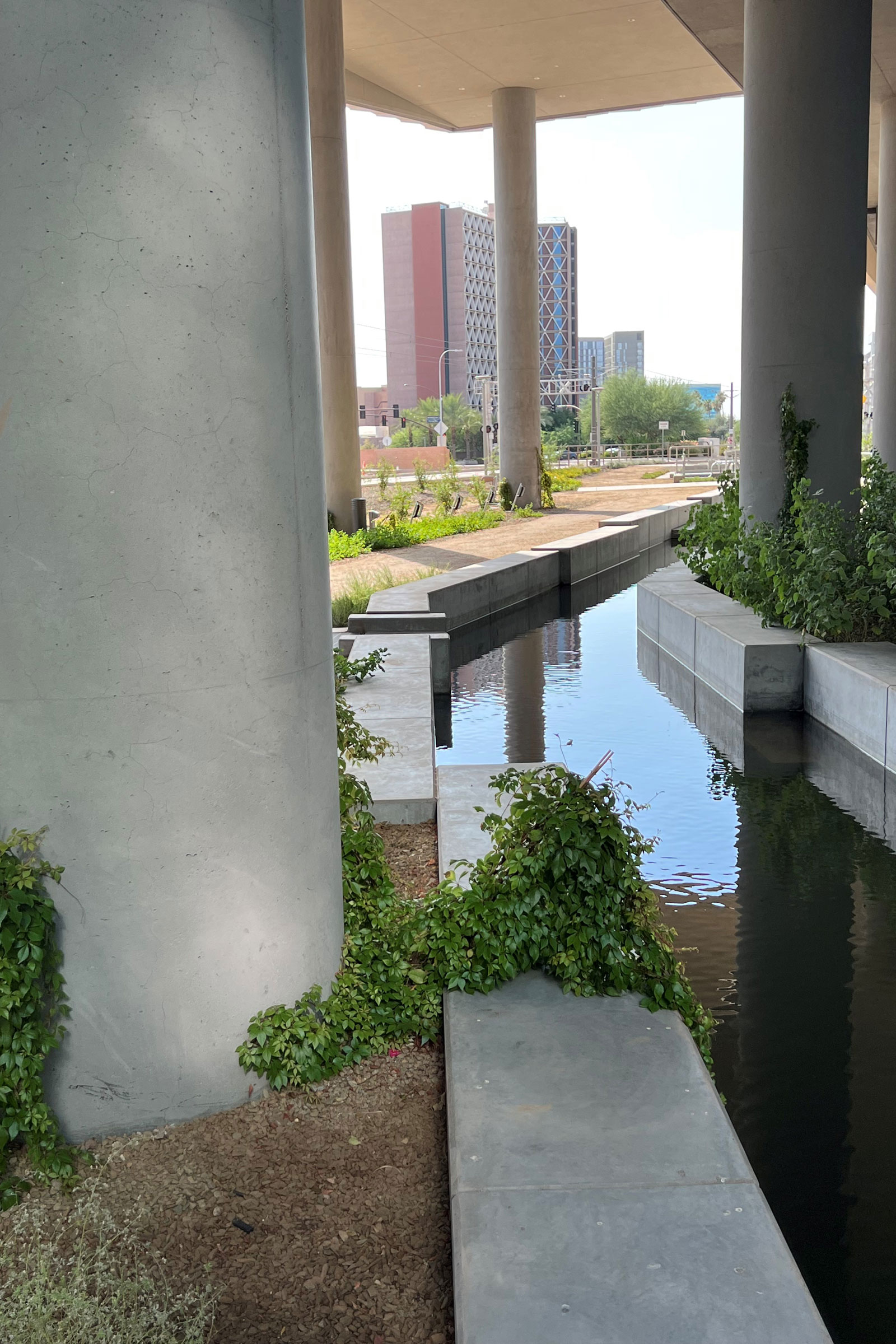

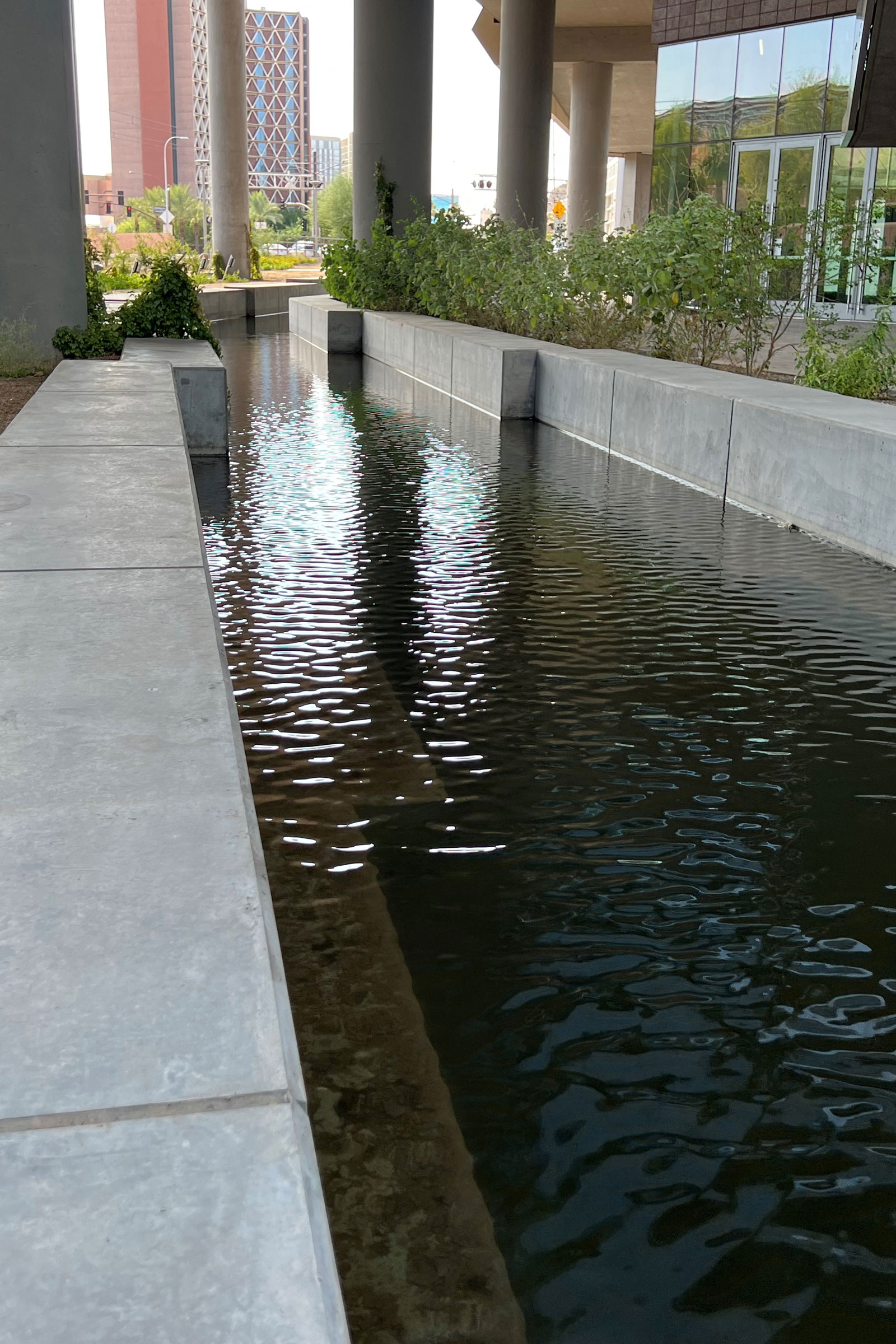

In addition to the high criteria sustainability requirements, the concrete needed to be aesthetically pleasing, since it would be used in Class A architecturally exposed columns, walls, stairs, deck soffits and polished concrete floors.

The Solution

Ready-mix producer Martin Marietta AZ, concrete contractor McCarthy Building Companies, and admixture supplier GCP worked closely together to identify the right concrete mix that could substantially reduce the amount of cement in the mix. The firms brought together significant expertise in helping customers improve building durability and reduce waste.

Martin Marietta advocates for science-based research that drives innovation and sustainable building design. Named one of the top 20 green builders in the country, McCarthy Building Companies is deeply involved in the evolution of sustainable construction. GCP develops products that make the manufacture of construction materials such as concrete more energy efficient.

Achieving the right concrete mix was no simple task. Although 40% cement-replacement mixes are not uncommon, they are usually used in a targeted approach, such as to control the heat of hydration. With this project the mix would need to be applied whole scale through the entire building. “Ready-mix concrete is sometimes viewed as a commodity, but the delivery of a product that has widescale application—especially one with architectural aspects to it—requires a significant mind shift,” Diaz says. “It takes months to determine the right mix—making sure the suppliers and chemical partners are working together to find the best admixtures and supplementary cementitious material (SCM) for the application.”

“Our principal design firm, ready-mix supplier, sustainability consultant, admixture supplier, and structural engineer worked together to identify the best mix design to meet our goals,” says McCarthy Building Companies’ Senior Project Engineer Kristine Sorensen. “There was a great deal of collaboration involved with identifying a sustainable mix design that would meet the structural integrity measures and would also look outstanding.”

“Everyone involved in the project came together to discuss different mix design scenarios and how to use locally available resources,” says Joel Lopez Martinez, Martin Marietta AZ quality control manager. “Using high fly ash mix design for the 6,000 PSI mix is beneficial as it reduces permeability to water and produces a densified product. GCP’s admixtures played a big part in the success of this mix design, as in help with water reduction by using WRDA 64 and increasing concrete workability by using ADVA 195.”

“Many times we have a pool of ready-mix contractors to work with and they have lots of mix designs already predetermined based on a project’s mix, strength, and flowability requirements,” Diaz says. “When you’re creating something new with high-strength requirements like this, there’s a big team effort required. Together we gathered input from the design team and then looked at all aspects of the job to answer questions such as ‘How do you control heat?’ and ‘How will the mix flow through congested rebar?”

For this mix Martin Marietta AZ used fly ash along WRDA 64® water reducer with ADVA® 195 superplasticizer from GCP. Once they selected a mix the team started batch trials to ensure it performed as structurally intended. Based on the success of those results, they finalized the mix and began the concrete pour.

“The ADVA admixture gave us the opportunity to keep the water/cement ratio low while achieving high strength as well as the workability to place the concrete very easily,” says Bill Wheeler, quality control for Martin Marietta AZ. “We prefer using the ADVA admixture because it results in fewer bubbles against the surface than midrange water reducers. This creates a smoother finish on the forms.”

The project proceeded smoothly and was completed at the end of 2021. “This is a legacy building that tells a unique story,” Diaz says. “We’re privileged to be a part of it.”
